Spring MVC form handling example

spring-mvc-form-handling-demo

In this tutorial, we will show you a Spring MVC form handling project to do the following stuff :

  1. Form value binding – JSP and Model.

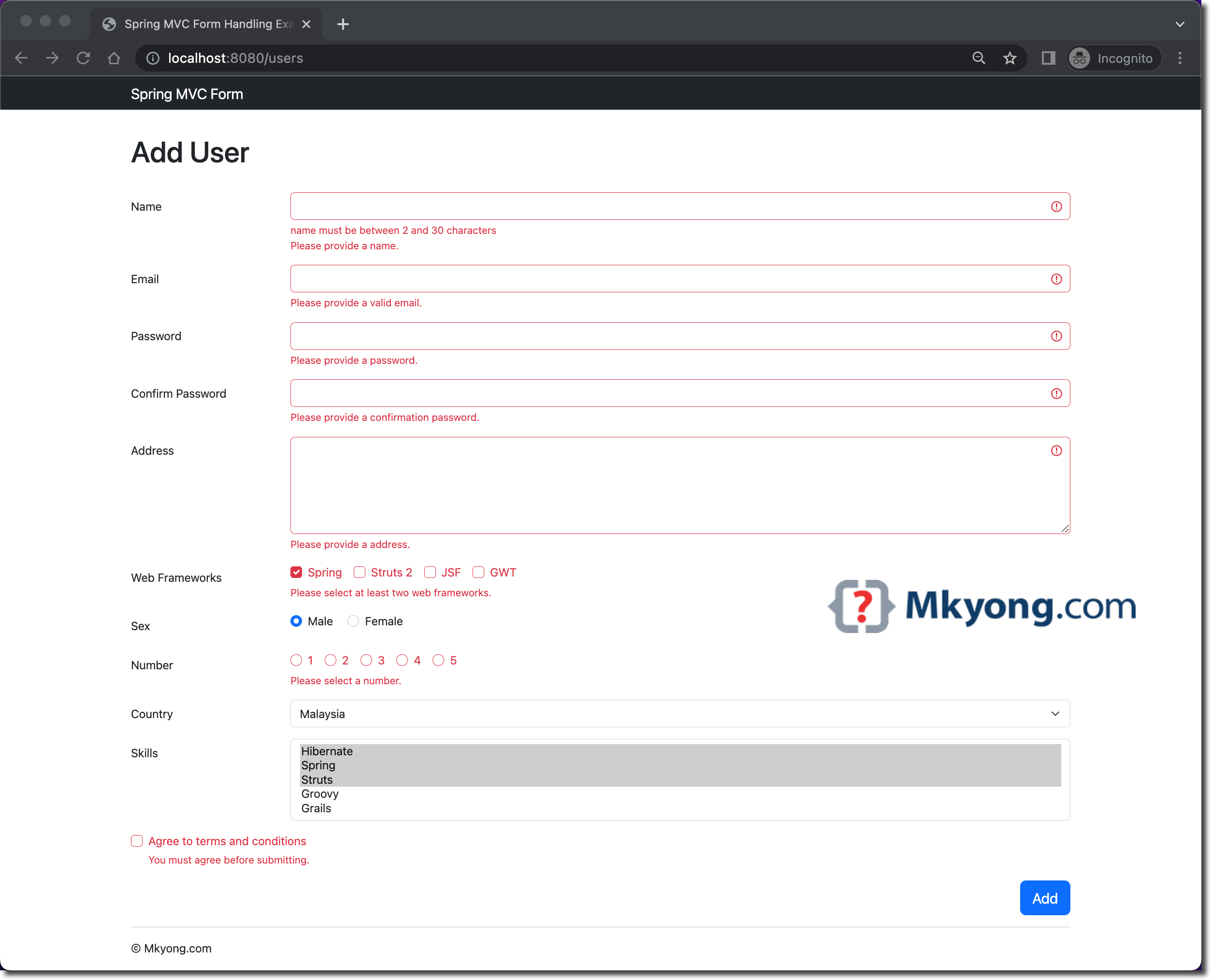

  2. Form validation and display error message.
  3. Form POST/REDIRECT/GET pattern, and add messages to flash attribute.
  4. CRUD operations, add, get, update and delete with an HTML form.

Technologies used :

  1. Spring 4.1.6.RELEASE
  2. Maven 3
  3. Bootstrap 3
  4. HSQLDB driver 2.3.2
  5. Logback 1.1.3
  6. JDK 1.7
  7. JSTL 1.2
  8. Eclipse IDE

What you’ll build :
A simple user management project, you can list, create, update and delete an user, via HTML forms. You’ll also see how to perform the form validation and display the error message conditionally. This project is styling with Bootstrap 3, and data are stored in the HSQL embedded database.

The URI structure :

URIMethodAction
/usersGETListing, display all users
/usersPOSTSave or update user
/users/{id}GETDisplay user {id}

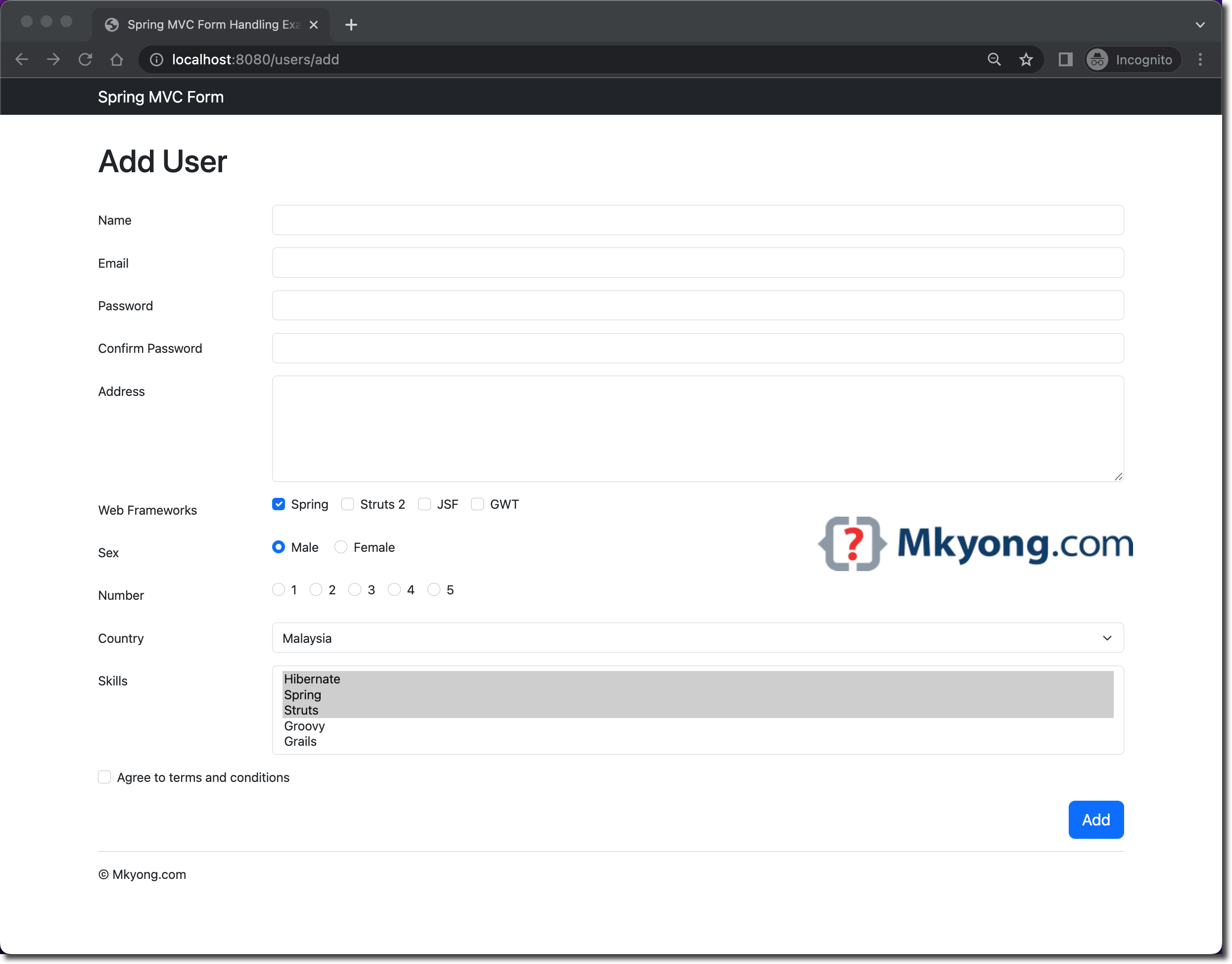

/users/addGETDisplay add user form
/users/{id}/updateGETDisplay update user form for {id}
/users/{id}/deletePOSTDelete user {id}
Note
In the old days, before Spring 3.0, we use SimpleFormController to do the form handling. As Spring 3.0, this class is deprecated in favor of Spring annotated @Controller.

Spring MVC Form Binding

Before you start the tutorial, you need to understand how the Spring MVC form binding works.

1.1 In controller, you add an object into a model attribute.


	@RequestMapping(value = "/users/add", method = RequestMethod.GET)
	public String showAddUserForm(Model model) {

		User user = new User();
		model.addAttribute("userForm", user);
		//...
	}

1.2 In HTML form, you use spring:form tag and bind the controller object via modelAttribute.


<%@ taglib prefix="spring" uri="http://www.springframework.org/tags"%>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form"%>

	<form:form method="post" modelAttribute="userForm" action="${userActionUrl}">
		<form:input path="name" type="text" /> <!-- bind to user.name-->
		<form:errors path="name" />
	</form:form>

1.3 When the HTML form is “POST”, you get the value via @ModelAttribute.


@RequestMapping(value = "/users", method = RequestMethod.POST)
public String saveOrUpdateUser(@ModelAttribute("userForm") User user,
		BindingResult result, Model model) {
	//...
}

Done. Let start the tutorial.

1. Project Directory

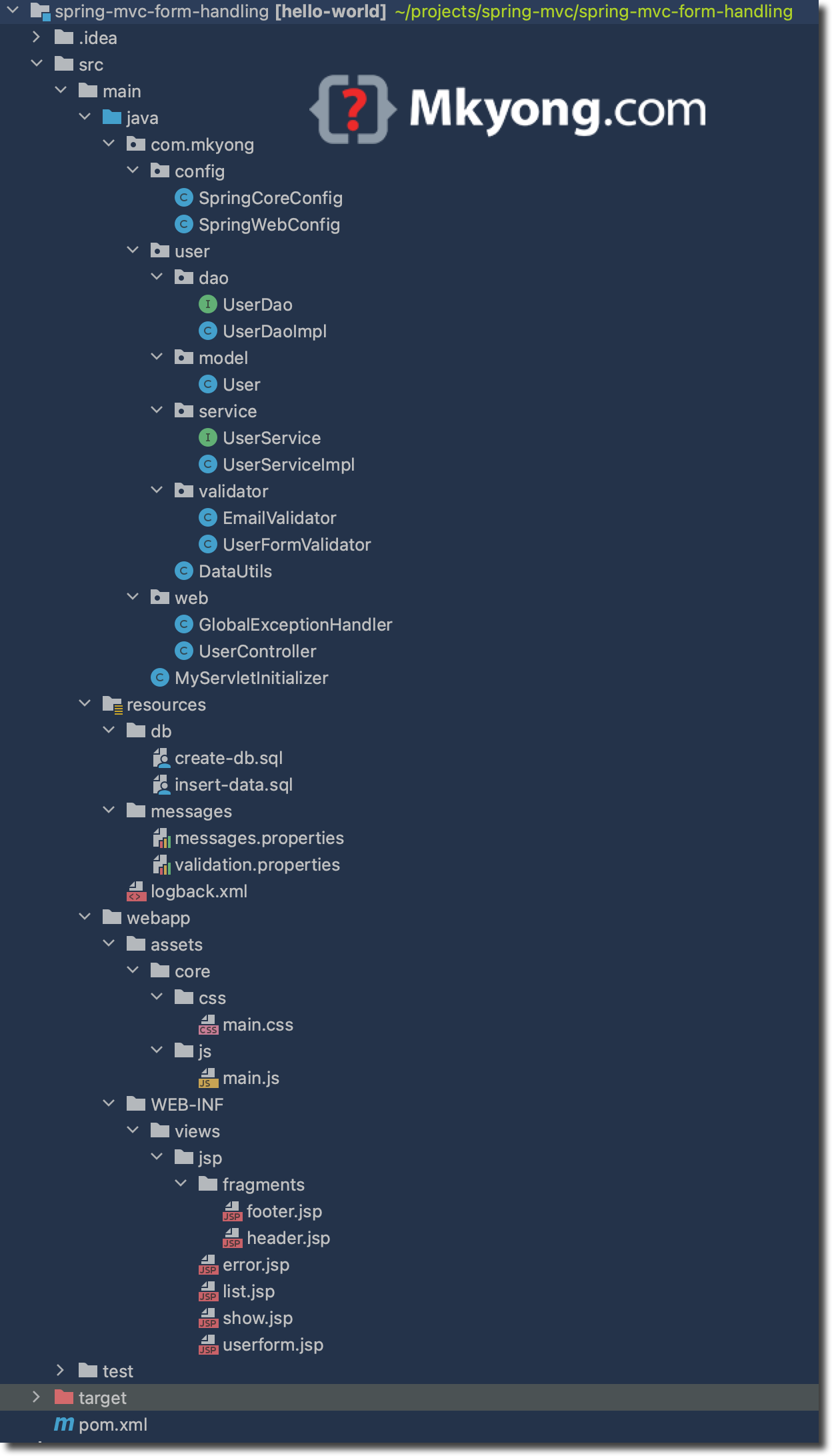

This is the final project directory structure. A standard Maven project.

spring-mvc-form-handling-directory

2. Project Dependencies

To develop a Spring MVC project, you need spring-webmvc.

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
	http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.mkyong.form</groupId>
	<artifactId>spring-mvc-form</artifactId>
	<packaging>war</packaging>
	<version>1.0-SNAPSHOT</version>
	<name>SpringMVC + Form Handling Example</name>

	<properties>
		<jdk.version>1.7</jdk.version>
		<spring.version>4.1.6.RELEASE</spring.version>
		<hsqldb.version>2.3.2</hsqldb.version>
		<logback.version>1.1.3</logback.version>
		<jcl.slf4j.version>1.7.12</jcl.slf4j.version>
		<jstl.version>1.2</jstl.version>
		<servletapi.version>3.1.0</servletapi.version>
	</properties>

	<dependencies>

		<!-- Spring Core -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
			<exclusions>
			   <exclusion>
				<groupId>commons-logging</groupId>
				<artifactId>commons-logging</artifactId>
			    </exclusion>
			</exclusions>
		</dependency>

		<!-- Spring Web -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- Spring JDBC -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- HyperSQL DB -->
		<dependency>
			<groupId>org.hsqldb</groupId>
			<artifactId>hsqldb</artifactId>
			<version>${hsqldb.version}</version>
		</dependency>

		<!-- logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${jcl.slf4j.version}</version>
		</dependency>

		<dependency>
			<groupId>ch.qos.logback</groupId>
			<artifactId>logback-classic</artifactId>
			<version>${logback.version}</version>
		</dependency>

		<!-- jstl -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>${servletapi.version}</version>
			<scope>provided</scope>
		</dependency>

	</dependencies>

	<build>
		<plugins>

			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.3</version>
				<configuration>
					<source>${jdk.version}</source>
					<target>${jdk.version}</target>
				</configuration>
			</plugin>

			<!-- embedded Jetty server, for testing -->
			<plugin>
				<groupId>org.eclipse.jetty</groupId>
				<artifactId>jetty-maven-plugin</artifactId>
				<version>9.2.11.v20150529</version>
				<configuration>
				  <scanIntervalSeconds>10</scanIntervalSeconds>
				  <webApp>
					<contextPath>/spring-mvc-form</contextPath>
				  </webApp>
				</configuration>
			</plugin>

			<!-- configure Eclipse workspace -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-eclipse-plugin</artifactId>
				<version>2.9</version>
				<configuration>
					<downloadSources>true</downloadSources>
					<downloadJavadocs>true</downloadJavadocs>
					<wtpversion>2.0</wtpversion>
					<wtpContextName>spring-mvc-form</wtpContextName>
				</configuration>
			</plugin>

		</plugins>
	</build>
</project>

3. Controller

Spring @Controller class to show you how to bind the form value via @ModelAttribute, add a form validator, add message into flash attribute, populate values for dropdown and checkboxes and etc. Read the comments for self-explanatory.

UserController.java

package com.mkyong.form.web;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.dao.EmptyResultDataAccessException;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.WebDataBinder;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.InitBinder;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;

import com.mkyong.form.model.User;
import com.mkyong.form.service.UserService;
import com.mkyong.form.validator.UserFormValidator;

@Controller
public class UserController {

	private final Logger logger = LoggerFactory.getLogger(UserController.class);

	@Autowired
	private UserService userService;

	@Autowired
	UserFormValidator userFormValidator;

	//Set a form validator
	@InitBinder
	protected void initBinder(WebDataBinder binder) {
		binder.setValidator(userFormValidator);
	}

	@RequestMapping(value = "/", method = RequestMethod.GET)
	public String index(Model model) {
		logger.debug("index()");
		return "redirect:/users";
	}

	// list page
	@RequestMapping(value = "/users", method = RequestMethod.GET)
	public String showAllUsers(Model model) {

		logger.debug("showAllUsers()");
		model.addAttribute("users", userService.findAll());
		return "users/list";

	}

	// save or update user
	// 1. @ModelAttribute bind form value
	// 2. @Validated form validator
	// 3. RedirectAttributes for flash value
	@RequestMapping(value = "/users", method = RequestMethod.POST)
	public String saveOrUpdateUser(@ModelAttribute("userForm") @Validated User user,
			BindingResult result, Model model,
			final RedirectAttributes redirectAttributes) {

		logger.debug("saveOrUpdateUser() : {}", user);

		if (result.hasErrors()) {
			populateDefaultModel(model);
			return "users/userform";
		} else {

			// Add message to flash scope
			redirectAttributes.addFlashAttribute("css", "success");
			if(user.isNew()){
			  redirectAttributes.addFlashAttribute("msg", "User added successfully!");
			}else{
			  redirectAttributes.addFlashAttribute("msg", "User updated successfully!");
			}

			userService.saveOrUpdate(user);

			// POST/REDIRECT/GET
			return "redirect:/users/" + user.getId();

			// POST/FORWARD/GET
			// return "user/list";

		}

	}

	// show add user form
	@RequestMapping(value = "/users/add", method = RequestMethod.GET)
	public String showAddUserForm(Model model) {

		logger.debug("showAddUserForm()");

		User user = new User();

		// set default value
		user.setName("mkyong123");
		user.setEmail("test@gmail.com");
		user.setAddress("abc 88");
		user.setNewsletter(true);
		user.setSex("M");
		user.setFramework(new ArrayList<String>(Arrays.asList("Spring MVC", "GWT")));
		user.setSkill(new ArrayList<String>(Arrays.asList("Spring", "Grails", "Groovy")));
		user.setCountry("SG");
		user.setNumber(2);
		model.addAttribute("userForm", user);

		populateDefaultModel(model);

		return "users/userform";

	}

	// show update form
	@RequestMapping(value = "/users/{id}/update", method = RequestMethod.GET)
	public String showUpdateUserForm(@PathVariable("id") int id, Model model) {

		logger.debug("showUpdateUserForm() : {}", id);

		User user = userService.findById(id);
		model.addAttribute("userForm", user);

		populateDefaultModel(model);

		return "users/userform";

	}

	// delete user
	@RequestMapping(value = "/users/{id}/delete", method = RequestMethod.POST)
	public String deleteUser(@PathVariable("id") int id,
		final RedirectAttributes redirectAttributes) {

		logger.debug("deleteUser() : {}", id);

		userService.delete(id);

		redirectAttributes.addFlashAttribute("css", "success");
		redirectAttributes.addFlashAttribute("msg", "User is deleted!");

		return "redirect:/users";

	}

	// show user
	@RequestMapping(value = "/users/{id}", method = RequestMethod.GET)
	public String showUser(@PathVariable("id") int id, Model model) {

		logger.debug("showUser() id: {}", id);

		User user = userService.findById(id);
		if (user == null) {
			model.addAttribute("css", "danger");
			model.addAttribute("msg", "User not found");
		}
		model.addAttribute("user", user);

		return "users/show";

	}

	private void populateDefaultModel(Model model) {

		List<String> frameworksList = new ArrayList<String>();
		frameworksList.add("Spring MVC");
		frameworksList.add("Struts 2");
		frameworksList.add("JSF 2");
		frameworksList.add("GWT");
		frameworksList.add("Play");
		frameworksList.add("Apache Wicket");
		model.addAttribute("frameworkList", frameworksList);

		Map<String, String> skill = new LinkedHashMap<String, String>();
		skill.put("Hibernate", "Hibernate");
		skill.put("Spring", "Spring");
		skill.put("Struts", "Struts");
		skill.put("Groovy", "Groovy");
		skill.put("Grails", "Grails");
		model.addAttribute("javaSkillList", skill);

		List<Integer> numbers = new ArrayList<Integer>();
		numbers.add(1);
		numbers.add(2);
		numbers.add(3);
		numbers.add(4);
		numbers.add(5);
		model.addAttribute("numberList", numbers);

		Map<String, String> country = new LinkedHashMap<String, String>();
		country.put("US", "United Stated");
		country.put("CN", "China");
		country.put("SG", "Singapore");
		country.put("MY", "Malaysia");
		model.addAttribute("countryList", country);

	}

}

4. Form Validator

4.1 Spring validator example.

UserFormValidator.java

package com.mkyong.form.validator;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Component;
import org.springframework.validation.Errors;
import org.springframework.validation.ValidationUtils;
import org.springframework.validation.Validator;

import com.mkyong.form.model.User;
import com.mkyong.form.service.UserService;

@Component
public class UserFormValidator implements Validator {

	@Autowired
	@Qualifier("emailValidator")
	EmailValidator emailValidator;

	@Autowired
	UserService userService;

	@Override
	public boolean supports(Class<?> clazz) {
		return User.class.equals(clazz);
	}

	@Override
	public void validate(Object target, Errors errors) {

		User user = (User) target;

		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "name", "NotEmpty.userForm.name");
		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "email", "NotEmpty.userForm.email");
		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "address", "NotEmpty.userForm.address");
		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "password", "NotEmpty.userForm.password");
		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "confirmPassword","NotEmpty.userForm.confirmPassword");
		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "sex", "NotEmpty.userForm.sex");
		ValidationUtils.rejectIfEmptyOrWhitespace(errors, "country", "NotEmpty.userForm.country");

		if(!emailValidator.valid(user.getEmail())){
			errors.rejectValue("email", "Pattern.userForm.email");
		}

		if(user.getNumber()==null || user.getNumber()<=0){
			errors.rejectValue("number", "NotEmpty.userForm.number");
		}

		if(user.getCountry().equalsIgnoreCase("none")){
			errors.rejectValue("country", "NotEmpty.userForm.country");
		}

		if (!user.getPassword().equals(user.getConfirmPassword())) {
			errors.rejectValue("confirmPassword", "Diff.userform.confirmPassword");
		}

		if (user.getFramework() == null || user.getFramework().size() < 2) {
			errors.rejectValue("framework", "Valid.userForm.framework");
		}

		if (user.getSkill() == null || user.getSkill().size() < 3) {
			errors.rejectValue("skill", "Valid.userForm.skill");
		}

	}

}
validation.properties

NotEmpty.userForm.name = Name is required!
NotEmpty.userForm.email = Email is required!
NotEmpty.userForm.address = Address is required!
NotEmpty.userForm.password = Password is required!
NotEmpty.userForm.confirmPassword = Confirm password is required!
NotEmpty.userForm.sex = Sex is required!
NotEmpty.userForm.number = Number is required!
NotEmpty.userForm.country = Country is required!
Valid.userForm.framework = Please select at least two frameworks!
Valid.userForm.skill = Please select at least three skills!
Diff.userform.confirmPassword = Passwords do not match, please retype!
Pattern.userForm.email = Invalid Email format!

To run the Spring Validator, add the validator via @InitBinder and annotate the model with @Validated


@InitBinder
protected void initBinder(WebDataBinder binder) {
	binder.setValidator(userFormValidator);
}

@RequestMapping(value = "/users", method = RequestMethod.POST)
public String saveOrUpdateUser(... @Validated User user,
		...) {

	//...

}

Or run it manually.


@RequestMapping(value = "/users", method = RequestMethod.POST)
public String saveOrUpdateUser(... User user,
		...) {
	userFormValidator.validate(user, result);
	//...
}

5. HTML Forms

All the HTML forms are css styling with Bootstrap framework, and using Spring form tags to do the display and form binding.
5.1 User Listings.

list.jsp

<%@ page session="false"%>
<%@ taglib prefix="spring" uri="http://www.springframework.org/tags"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>

<!DOCTYPE html>
<html lang="en">

<jsp:include page="../fragments/header.jsp" />

<body>

	<div class="container">

		<c:if test="${not empty msg}">
		    <div class="alert alert-${css} alert-dismissible" role="alert">
			<button type="button" class="close" data-dismiss="alert"
                                aria-label="Close">
				<span aria-hidden="true">&times;</span>
			</button>
			<strong>${msg}</strong>
		    </div>
		</c:if>

		<h1>All Users</h1>

		<table class="table table-striped">
			<thead>
				<tr>
					<th>#ID</th>
					<th>Name</th>
					<th>Email</th>
					<th>framework</th>
					<th>Action</th>
				</tr>
			</thead>

			<c:forEach var="user" items="${users}">
			    <tr>
				<td>
					${user.id}
				</td>
				<td>${user.name}</td>
				<td>${user.email}</td>
				<td>
                                  <c:forEach var="framework" items="${user.framework}"
                                                             varStatus="loop">
					${framework}
    				        <c:if test="${not loop.last}">,</c:if>
				  </c:forEach>
                                </td>
				<td>
				  <spring:url value="/users/${user.id}" var="userUrl" />
				  <spring:url value="/users/${user.id}/delete" var="deleteUrl" />
				  <spring:url value="/users/${user.id}/update" var="updateUrl" />

				  <button class="btn btn-info"
                                          onclick="location.href='${userUrl}'">Query</button>
				  <button class="btn btn-primary"
                                          onclick="location.href='${updateUrl}'">Update</button>
				  <button class="btn btn-danger"
                                          onclick="this.disabled=true;post('${deleteUrl}')">Delete</button>
                                </td>
			    </tr>
			</c:forEach>
		</table>

	</div>

	<jsp:include page="../fragments/footer.jsp" />

</body>
</html>
show.jsp

<%@ page session="false"%>
<%@ taglib prefix="spring" uri="http://www.springframework.org/tags"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form"%>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>

<!DOCTYPE html>
<html lang="en">

<jsp:include page="../fragments/header.jsp" />

<div class="container">

	<c:if test="${not empty msg}">
		<div class="alert alert-${css} alert-dismissible" role="alert">
			<button type="button" class="close" data-dismiss="alert"
                                aria-label="Close">
				<span aria-hidden="true">&times;</span>
			</button>
			<strong>${msg}</strong>
		</div>
	</c:if>

	<h1>User Detail</h1>
	<br />

	<div class="row">
		<label class="col-sm-2">ID</label>
		<div class="col-sm-10">${user.id}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Name</label>
		<div class="col-sm-10">${user.name}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Email</label>
		<div class="col-sm-10">${user.email}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Address</label>
		<div class="col-sm-10">${user.address}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Newsletter</label>
		<div class="col-sm-10">${user.newsletter}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Web Frameworks</label>
		<div class="col-sm-10">${user.framework}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Sex</label>
		<div class="col-sm-10">${user.sex}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Number</label>
		<div class="col-sm-10">${user.number}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Country</label>
		<div class="col-sm-10">${user.country}</div>
	</div>

	<div class="row">
		<label class="col-sm-2">Skill</label>
		<div class="col-sm-10">${user.skill}</div>
	</div>

</div>

<jsp:include page="../fragments/footer.jsp" />

</body>
</html>
userform.jsp

<%@ page session="false"%>
<%@ taglib prefix="spring" uri="http://www.springframework.org/tags"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form"%>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>

<!DOCTYPE html>
<html lang="en">

<jsp:include page="../fragments/header.jsp" />

<div class="container">

	<c:choose>
		<c:when test="${userForm['new']}">
			<h1>Add User</h1>
		</c:when>
		<c:otherwise>
			<h1>Update User</h1>
		</c:otherwise>
	</c:choose>
	<br />

	<spring:url value="/users" var="userActionUrl" />

	<form:form class="form-horizontal" method="post"
                modelAttribute="userForm" action="${userActionUrl}">

		<form:hidden path="id" />

		<spring:bind path="name">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Name</label>
			<div class="col-sm-10">
				<form:input path="name" type="text" class="form-control"
                                id="name" placeholder="Name" />
				<form:errors path="name" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="email">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Email</label>
			<div class="col-sm-10">
				<form:input path="email" class="form-control"
                                id="email" placeholder="Email" />
				<form:errors path="email" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="password">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Password</label>
			<div class="col-sm-10">
				<form:password path="password" class="form-control"
                                id="password" placeholder="password" />
				<form:errors path="password" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="confirmPassword">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">confirm Password</label>
			<div class="col-sm-10">
				<form:password path="confirmPassword" class="form-control"
                                id="password" placeholder="password" />
				<form:errors path="confirmPassword" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="address">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Address</label>
			<div class="col-sm-10">
				<form:textarea path="address" rows="5" class="form-control"
                                id="address" placeholder="address" />
				<form:errors path="address" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="newsletter">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Newsletter</label>
			<div class="col-sm-10">
				<div class="checkbox">
				  <label>
                                     <form:checkbox path="newsletter" id="newsletter" />
				  </label>
				     <form:errors path="newsletter" class="control-label" />
				</div>
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="framework">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Web Frameworks</label>
			<div class="col-sm-10">
				<form:checkboxes path="framework" items="${frameworkList}"
                                 element="label class='checkbox-inline'" />
				<br />
				<form:errors path="framework" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="sex">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Sex</label>
			<div class="col-sm-10">
				<label class="radio-inline">
                                  <form:radiobutton path="sex" value="M" /> Male
				</label>
                                <label class="radio-inline">
                                  <form:radiobutton path="sex" value="F" /> Female
				</label> <br />
				<form:errors path="sex" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="number">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Number</label>
			<div class="col-sm-10">
				<form:radiobuttons path="number" items="${numberList}"
                                element="label class='radio-inline'" />
				<br />
				<form:errors path="number" class="control-label" />
			</div>
		  </div>
		</spring:bind>

		<spring:bind path="country">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Country</label>
			<div class="col-sm-5">
				<form:select path="country" class="form-control">
					<form:option value="NONE" label="--- Select ---" />
					<form:options items="${countryList}" />
				</form:select>
				<form:errors path="country" class="control-label" />
			</div>
			<div class="col-sm-5"></div>
		  </div>
		</spring:bind>

		<spring:bind path="skill">
		  <div class="form-group ${status.error ? 'has-error' : ''}">
			<label class="col-sm-2 control-label">Java Skills</label>
			<div class="col-sm-5">
				<form:select path="skill" items="${javaSkillList}"
                                 multiple="true" size="5" class="form-control" />
				<form:errors path="skill" class="control-label" />
			</div>
			<div class="col-sm-5"></div>
		  </div>
		</spring:bind>

		<div class="form-group">
		  <div class="col-sm-offset-2 col-sm-10">
			<c:choose>
			  <c:when test="${userForm['new']}">
			     <button type="submit" class="btn-lg btn-primary pull-right">Add
                             </button>
			  </c:when>
			  <c:otherwise>
			     <button type="submit" class="btn-lg btn-primary pull-right">Update
                             </button>
			  </c:otherwise>
			</c:choose>
		  </div>
		</div>
	</form:form>

</div>

<jsp:include page="../fragments/footer.jsp" />

</body>
</html>

6. Database Stuff

6.1 Create a table and insert some data for testing.

create-db.sql

CREATE TABLE users (
  id INTEGER GENERATED BY DEFAULT AS IDENTITY(START WITH 100, INCREMENT BY 1) PRIMARY KEY,
  name VARCHAR(30),
  email  VARCHAR(50),
  address VARCHAR(255),
  password VARCHAR(20),
  newsletter BOOLEAN,
  framework VARCHAR(500),
  sex VARCHAR(1),
  NUMBER INTEGER,
  COUNTRY VARCHAR(10),
  SKILL VARCHAR(500)
);
insert-data.sql

INSERT INTO users (name, email, framework) VALUES ('mkyong', 'mkyong@gmail.com', 'Spring MVC, GWT');
INSERT INTO users (name, email) VALUES ('alex', 'alex@yahoo.com', 'Spring MVC, GWT');
INSERT INTO users (name, email) VALUES ('joel', 'joel@gmail.com', 'Spring MVC, GWT');

6.2 Start a HSQLDB embedded database, create a datasource and jdbcTemplate.

SpringDBConfig.java

package com.mkyong.form.config;

import javax.sql.DataSource;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.namedparam.NamedParameterJdbcTemplate;
import org.springframework.jdbc.datasource.embedded.EmbeddedDatabase;
import org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseBuilder;
import org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseType;

@Configuration
public class SpringDBConfig {

	@Autowired
	DataSource dataSource;

	@Bean
	public NamedParameterJdbcTemplate getNamedParameterJdbcTemplate() {
		return new NamedParameterJdbcTemplate(dataSource);
	}

	@Bean
	public DataSource getDataSource() {
		EmbeddedDatabaseBuilder builder = new EmbeddedDatabaseBuilder();
		EmbeddedDatabase db = builder.setName("testdb")
                        .setType(EmbeddedDatabaseType.HSQL)
			.addScript("db/sql/create-db.sql")
                        .addScript("db/sql/insert-data.sql").build();
		return db;
	}

}

6.3 User object.

user.java

package com.mkyong.form.model;

import java.util.List;

public class User {
	// form:hidden - hidden value
	Integer id;

	// form:input - textbox
	String name;

	// form:input - textbox
	String email;

	// form:textarea - textarea
	String address;

	// form:input - password
	String password;

	// form:input - password
	String confirmPassword;

	// form:checkbox - single checkbox
	boolean newsletter;

	// form:checkboxes - multiple checkboxes
	List<String> framework;

	// form:radiobutton - radio button
	String sex;

	// form:radiobuttons - radio button
	Integer number;

	// form:select - form:option - dropdown - single select
	String country;

	// form:select - multiple=true - dropdown - multiple select
	List<String> skill;

	//Check if this is for New of Update
	public boolean isNew() {
		return (this.id == null);
	}

	//...

}

7. Services and DAO

UserService.java

package com.mkyong.form.service;

import java.util.List;
import com.mkyong.form.model.User;

public interface UserService {

	User findById(Integer id);

	List<User> findAll();

	void saveOrUpdate(User user);

	void delete(int id);

}
UserServiceImpl.java

package com.mkyong.form.service;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.mkyong.form.dao.UserDao;
import com.mkyong.form.model.User;

@Service("userService")
public class UserServiceImpl implements UserService {

	UserDao userDao;

	@Autowired
	public void setUserDao(UserDao userDao) {
		this.userDao = userDao;
	}

	@Override
	public User findById(Integer id) {
		return userDao.findById(id);
	}

	@Override
	public List<User> findAll() {
		return userDao.findAll();
	}

	@Override
	public void saveOrUpdate(User user) {

		if (findById(user.getId())==null) {
			userDao.save(user);
		} else {
			userDao.update(user);
		}

	}

	@Override
	public void delete(int id) {
		userDao.delete(id);
	}

}
UserDao.java

package com.mkyong.form.dao;

import java.util.List;

import com.mkyong.form.model.User;

public interface UserDao {

	User findById(Integer id);

	List<User> findAll();

	void save(User user);

	void update(User user);

	void delete(Integer id);

}
UserDaoImpl.java

package com.mkyong.form.dao;

import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.dao.DataAccessException;
import org.springframework.dao.EmptyResultDataAccessException;
import org.springframework.jdbc.core.RowMapper;
import org.springframework.jdbc.core.namedparam.MapSqlParameterSource;
import org.springframework.jdbc.core.namedparam.NamedParameterJdbcTemplate;
import org.springframework.jdbc.core.namedparam.SqlParameterSource;
import org.springframework.jdbc.support.GeneratedKeyHolder;
import org.springframework.jdbc.support.KeyHolder;
import org.springframework.stereotype.Repository;
import org.springframework.util.StringUtils;

import com.mkyong.form.model.User;

@Repository
public class UserDaoImpl implements UserDao {

	NamedParameterJdbcTemplate namedParameterJdbcTemplate;

	@Autowired
	public void setNamedParameterJdbcTemplate(
		NamedParameterJdbcTemplate namedParameterJdbcTemplate) {
		this.namedParameterJdbcTemplate = namedParameterJdbcTemplate;
	}

	@Override
	public User findById(Integer id) {

		Map<String, Object> params = new HashMap<String, Object>();
		params.put("id", id);

		String sql = "SELECT * FROM users WHERE id=:id";

		User result = null;
		try {
			result = namedParameterJdbcTemplate
                          .queryForObject(sql, params, new UserMapper());
		} catch (EmptyResultDataAccessException e) {
			// do nothing, return null
		}

		return result;

	}

	@Override
	public List<User> findAll() {

		String sql = "SELECT * FROM users";
		List<User> result = namedParameterJdbcTemplate.query(sql, new UserMapper());
		return result;

	}

	@Override
	public void save(User user) {

		KeyHolder keyHolder = new GeneratedKeyHolder();

		String sql = "INSERT INTO USERS(NAME, EMAIL, ADDRESS, PASSWORD, NEWSLETTER, FRAMEWORK, SEX, NUMBER, COUNTRY, SKILL) "
				+ "VALUES ( :name, :email, :address, :password, :newsletter, :framework, :sex, :number, :country, :skill)";

		namedParameterJdbcTemplate.update(sql, getSqlParameterByModel(user), keyHolder);
		user.setId(keyHolder.getKey().intValue());

	}

	@Override
	public void update(User user) {

		String sql = "UPDATE USERS SET NAME=:name, EMAIL=:email, ADDRESS=:address, "
			+ "PASSWORD=:password, NEWSLETTER=:newsletter, FRAMEWORK=:framework, "
			+ "SEX=:sex, NUMBER=:number, COUNTRY=:country, SKILL=:skill WHERE id=:id";

		namedParameterJdbcTemplate.update(sql, getSqlParameterByModel(user));

	}

	@Override
	public void delete(Integer id) {

		String sql = "DELETE FROM USERS WHERE id= :id";
		namedParameterJdbcTemplate.update(sql, new MapSqlParameterSource("id", id));

	}

	private SqlParameterSource getSqlParameterByModel(User user) {

		MapSqlParameterSource paramSource = new MapSqlParameterSource();
		paramSource.addValue("id", user.getId());
		paramSource.addValue("name", user.getName());
		paramSource.addValue("email", user.getEmail());
		paramSource.addValue("address", user.getAddress());
		paramSource.addValue("password", user.getPassword());
		paramSource.addValue("newsletter", user.isNewsletter());

		// join String
		paramSource.addValue("framework", convertListToDelimitedString(user.getFramework()));
		paramSource.addValue("sex", user.getSex());
		paramSource.addValue("number", user.getNumber());
		paramSource.addValue("country", user.getCountry());
		paramSource.addValue("skill", convertListToDelimitedString(user.getSkill()));

		return paramSource;
	}

	private static final class UserMapper implements RowMapper<User> {

		public User mapRow(ResultSet rs, int rowNum) throws SQLException {
			User user = new User();
			user.setId(rs.getInt("id"));
			user.setName(rs.getString("name"));
			user.setEmail(rs.getString("email"));
			user.setFramework(convertDelimitedStringToList(rs.getString("framework")));
			user.setAddress(rs.getString("address"));
			user.setCountry(rs.getString("country"));
			user.setNewsletter(rs.getBoolean("newsletter"));
			user.setNumber(rs.getInt("number"));
			user.setPassword(rs.getString("password"));
			user.setSex(rs.getString("sex"));
			user.setSkill(convertDelimitedStringToList(rs.getString("skill")));
			return user;
		}
	}

	private static List<String> convertDelimitedStringToList(String delimitedString) {

		List<String> result = new ArrayList<String>();

		if (!StringUtils.isEmpty(delimitedString)) {
			result = Arrays.asList(StringUtils.delimitedListToStringArray(delimitedString, ","));
		}
		return result;

	}

	private String convertListToDelimitedString(List<String> list) {

		String result = "";
		if (list != null) {
			result = StringUtils.arrayToCommaDelimitedString(list.toArray());
		}
		return result;

	}

}

8. Spring Configuration

Mixing Spring XML and JavaConfig.

SpringWebConfig.java

package com.mkyong.form.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.support.ResourceBundleMessageSource;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.JstlView;

@EnableWebMvc
@Configuration
@ComponentScan({ "com.mkyong.form.web", "com.mkyong.form.service", "com.mkyong.form.dao",
		"com.mkyong.form.exception", "com.mkyong.form.validator" })
public class SpringWebConfig extends WebMvcConfigurerAdapter {

	@Override
	public void addResourceHandlers(ResourceHandlerRegistry registry) {
		registry.addResourceHandler("/resources/**").addResourceLocations("/resources/");
	}

	@Bean
	public InternalResourceViewResolver viewResolver() {
		InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
		viewResolver.setViewClass(JstlView.class);
		viewResolver.setPrefix("/WEB-INF/views/jsp/");
		viewResolver.setSuffix(".jsp");
		return viewResolver;
	}

	@Bean
	public ResourceBundleMessageSource messageSource() {
		ResourceBundleMessageSource rb = new ResourceBundleMessageSource();
		rb.setBasenames(new String[] { "messages/messages", "messages/validation" });
		return rb;
	}

}
spring-web-servlet.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- Scan the JavaConfig -->
	<context:component-scan base-package="com.mkyong.form.config" />

</beans>
web.xml

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
	      http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
	version="3.0">

	<display-name>Spring3 MVC Application</display-name>

	<servlet>
		<servlet-name>spring-web</servlet-name>
		<servlet-class>
			org.springframework.web.servlet.DispatcherServlet
		</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>spring-web</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<error-page>
		<error-code>500</error-code>
		<location>/WEB-INF/views/jsp/error.jsp</location>
	</error-page>

	<error-page>
		<error-code>404</error-code>
		<location>/WEB-INF/views/jsp/error.jsp</location>
	</error-page>

	<error-page>
		<location>/WEB-INF/views/jsp/error.jsp</location>
	</error-page>

</web-app>

9. Demo

Download the project and type mvn jetty:run


$ mvn jetty:run
[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building SpringMVC + Form Handling Example 1.0-SNAPSHOT
[INFO] ------------------------------------------------------------------------
//...
[INFO] Started Jetty Server
[INFO] Starting scanner at interval of 10 seconds.

9.1 List all users. http://localhost:8080/spring-mvc-form/users

spring-mvc-form-handling-demo1

9.2 Add an user. http://localhost:8080/spring-mvc-form/users/add

spring-mvc-form-handling-demo-add

9.3 Form validation.

spring-mvc-form-handling-demo-add-error

9.4 New user is added. http://localhost:8080/spring-mvc-form/users

spring-mvc-form-handling-demo-add-done

9.5 Delete an user. http://localhost:8080/spring-mvc-form/users/104/delete

spring-mvc-form-handling-demo-delete

Download Source Code

Download it – spring4-form-handle-example.zip (80 kb)
Github – TBD

References

  1. Using Spring’s form tag library
  2. Spring MVC 3 Validation
  3. RedirectAttributes JavaDoc

About the Author

author image
mkyong
Founder of Mkyong.com, love Java and open source stuff. Follow him on Twitter. If you like my tutorials, consider make a donation to these charities.

Comments

avatar
92 Comment threads
30 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
93 Comment authors
akedevKhanEmilio CastellanoDougLeo Recent comment authors
newest oldest most voted
Lucas
Guest
Lucas

Thank’s very much my friend. GOD bless you!

mkyong
Guest
mkyong

This article is fully updated with the Spring @Controller

1. Download the source and start the embedded Jetty server.
mvn jetty:run

2. Deployed URL
http://localhost:8080/spring-mvc-form/users

P.S Previously, this article was using the deprecated SimpleFormController

Doug
Guest
Doug

Fantastic work! Thank you for the detailed and helpful tutorial! Well done!

trackback
Handling duplicate form submission in Spring MVC

[…] form submission in Spring MVC Written on August 12, 2010 at 5:03 pm by mkyong In last Spring MVC form handling example, if you refresh the form success view, most browsers will prompt a pop-up dialog to confirm […]

Patrick
Guest
Patrick

Nice Blog Post, but why didn’t you use a single annotation?
They make life so much easier and you don’t have to use subclassing for the controllers etc. and you can unittest it much better.

trackback
Spring MVC handling multipage forms with AbstractWizardFormController

[…] AbstractWizardFormController Written on August 16, 2010 at 2:30 pm by mkyong In last Spring MVC form handling example, it shows the use SimpleFormController to handle the single page form submission, which is quite […]

trackback
Spring MVC hello world annotation example

[…] The controller class is no longer need to extends base controller like AbstractController or SimpleFormController, just simply annotate the class with a @Controller […]

trackback
Spring MVC file upload example

[…] related components only, for detail about how the Spring MVC form handling work, refer to this Spring MVC form handling example. Note Actually, Spring has a very well-written documentation about the Spring’s multipart […]

trackback
Spring MVC – Neither BindingResult nor plain target object for bean name ‘xxx’ available as request attribute.

[…] just converted the Spring MVC xml-based form controller to annotation-based form controller, and hits the following error message. SEVERE: Neither […]

trackback
Spring MVC form handling annotation example

[…] MVC web application. Note This annotation-based example is converted from the last Spring MVC form handling XML-based example. So, please compare and spots the […]

trackback
[Guida] Validazione con Spring 3 « Diegoitaliait's Blog
Tiny
Guest
Tiny

Where have you marked the welcome page to be customer.htm?Nothing is mentioned about customer.htm in your application.

http://localhost:8080/SpringMVC/customer.htm

JJ
Guest
JJ

Hi,
For a late learner your identical examples of using annotations and doing the same without have been a lifesaver.

I hope you keep writing!

praveenkumar reddy
Guest
praveenkumar reddy

how to provide the default value in the text field using tag

praveenkumar reddy
Guest
praveenkumar reddy

how to provide the default value in the text field using form:input tag in spring

thanksalot
Guest
thanksalot

Thank you for a wonderful article.. very much helpful for noobs like me…

Terry Jarrard
Guest
Terry Jarrard

This was a great example. Probably the best I’ve seen so far! Thanks so much for taking the time to do this. one question though. I’ve not seen any examples where there are form inputs and data from other pages all on the same page. for example. If I entered a date on one page. Continue on in the process, and on a later page, where I’m asking for more data (from form inputs) display the dates from the previous step. Or using your example here, If you had the username entered on a separate page, and then on the… Read more »

JC
Guest
JC

What Java compiler do you use? Got error as below:
Description Resource Path Location Type
Java compiler level does not match the version of the installed Java project facet. SpringMVCForm Unknown Faceted Project Problem (Java Version Mismatch)

Shawn Z
Guest
Shawn Z

Cutting and pasting that does not work in MVC3. To get the extension to work, I had to create a class file: using System; using System.Collections.Generic; using System.Linq; using System.Web; using System.Web.Mvc; namespace incMvcSite.Classes { public static class HtmlPrefixScopeExtensions { public static IDisposable BeginHtmlFieldPrefixScope(this HtmlHelper html, string htmlFieldPrefix) { return new HtmlFieldPrefixScope(html.ViewData.TemplateInfo, htmlFieldPrefix); } private class HtmlFieldPrefixScope : IDisposable { private readonly TemplateInfo templateInfo; private readonly string previousHtmlFieldPrefix; public HtmlFieldPrefixScope(TemplateInfo templateInfo, string htmlFieldPrefix) { this.templateInfo = templateInfo; previousHtmlFieldPrefix = templateInfo.HtmlFieldPrefix; templateInfo.HtmlFieldPrefix = htmlFieldPrefix; } public void Dispose() { templateInfo.HtmlFieldPrefix = previousHtmlFieldPrefix; } } } } In the Razor (.cshtml) file,… Read more »

VenkataPrasad
Guest
VenkataPrasad

I tried this example successfully. I later tied a step ahead where I submit in page1(jsp page) then instead of displaying in page2(jsp), I have comeup with a form in pag2 where user inputs data. Page1 has a command class(mentioned in jsp and bean definition(commandclass and command name)), page2 has a different command class, with a different commandclassName. As I click submit on page 1, instead of displaying page2, it is giving the error
“Neither BindingResult nor plain target object for bean name ‘customerForm’ available as request attribute”

Nishant
Guest
Nishant

Thanks dude you have given best description for spring
Keep up the good work

csguy
Guest
csguy

hi mkyong,

I would like to ask how to retain the list value in referenceData() in the submission pass the validate checking and throw error in onSubmit method?

if there is error in onSubmit method i try to forward to back the same and show errors but the reference data is missing e.g. list options in selection box becomes empty.

sriram
Guest
sriram

Hi,
I downloaded this code and when i try to access customer.htm, it gives me

org.springframework.web.servlet.DispatcherServlet noHandlerFound

WARNING: No mapping found for HTTP request with URI [/SpringMkyong/customer.htm] in DispatcherServlet with name ‘dispatcher’

Why i am getting like this? i googled it but if of no use.

Vaibhav
Guest
Vaibhav

One of the best examples i have ever seen on Spring MVC. Great Work. Keep it up!

Kai
Guest
Kai

Mkyong – Thank you for such a wonderful, lightweight and easy to follow set of tutorials. I am new to Spring and I find your tutorials much easier to work with the the Spring reference manual. I do have one question – is there an easy way of populating the ‘referencedata’ map dynamically via a properties file or XML? I’m just thinking it would be good to be able to change these values without re-building and re-deploying the app. I appreciate I could write some java code to do it via a Properties object but surely something already exists ‘out… Read more »

Sudhakar
Guest
Sudhakar

Dear friend,
I really impressed by this website.
Good work buddy.

Levan
Guest
Levan

Once again thanks a lot for the nice and clear tutorial!

Jenni
Guest
Jenni

Good one. Thanks for this tutorial.
Please keep writing more

olsi
Guest
olsi

i download and run on my maven eclipse but i get a http error 404. The webpage cannot be found. i emphasize its a helpful article.

Bona
Guest
Bona

what a clear explanation!!!!!!
