Struts 2 + Spring 2.5.6 + Quartz 1.6 scheduler integration example

Struts 2 + Spring 2.5.6 + Quartz scheduler integration example

In this tutorial, we will show you how to integrate Struts 2 + Spring 2.5.6 + Quartz 1.6.5 scheduler together. The relationship look like this :


Struts 2 <-- Plugin --> Spring <--(Helper)--> Quartz <---> Scheduler task

Tools used

  1. Spring 2.5.6
  2. Quartz 1.6.3
  3. Struts 2.1.8
  4. Struts2-spring-plugin 2.1.8
  5. Maven 2
  6. Eclipse 3.6
Note
You may also interest at this – Struts 2 + Spring 3 + Quartz 1.8.6 integration example..

1. Project folder

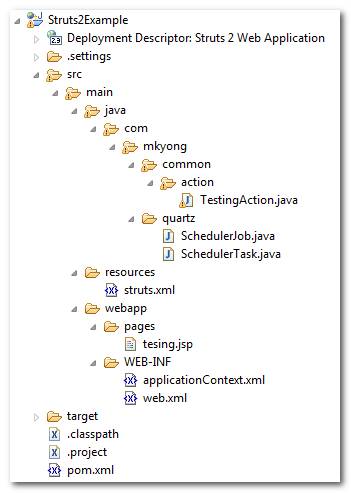

Here’s the project folder structure.

Struts 2 Spring Quartz integration example

2. Dependency Libraries

Get all the dependency libraries, you need Spring, Struts2, Strut2-Spring-Plugin and Quartz jar file.

File : pom.xml


  ...
  <dependencies>

	<!-- Struts 2 -->
	<dependency>
          <groupId>org.apache.struts</groupId>
	  <artifactId>struts2-core</artifactId>
	  <version>2.1.8</version>
        </dependency>

	<!-- Quartz framework -->
	<dependency>
          <groupId>opensymphony</groupId>
	  <artifactId>quartz</artifactId>
	  <version>1.6.3</version>
	</dependency>

	<!-- Quartz dependency library-->
	<dependency>
	  <groupId>commons-collections</groupId>
	  <artifactId>commons-collections</artifactId>
	  <version>3.2.1</version>
	</dependency>

	<!-- Spring framework -->
	<dependency>
	  <groupId>org.springframework</groupId>
	  <artifactId>spring</artifactId>
	  <version>2.5.6</version>
	</dependency>

	<dependency>
	  <groupId>org.springframework</groupId>
	  <artifactId>spring-web</artifactId>
	  <version>2.5.6</version>
	</dependency>

	<!-- Struts 2 + Spring plugins -->
	<dependency>
          <groupId>org.apache.struts</groupId>
	  <artifactId>struts2-spring-plugin</artifactId>
	  <version>2.1.8</version>
        </dependency>

  </dependencies>
  ...

3. Scheduler Task

Put all the scheduler logic in this class.

File : SchedulerTask.java


package com.mkyong.quartz;

public class SchedulerTask {

   public void printSchedulerMessage() {

	   System.out.println("Struts 2 + Spring + Quartz ......");

   }
}

4. Spring + Quartz

To integrate Spring and Quartz, create a class extends the org.springframework.scheduling.quartz.QuartzJobBean, reference the scheduler task (SchedulerTask.java) via a setter method, and put the scheduler logic inside the executeInternal() method.

File : SchedulerJob.java


package com.mkyong.quartz;

import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.scheduling.quartz.QuartzJobBean;

public class SchedulerJob extends QuartzJobBean
{
	private SchedulerTask schedulerTask;

	public void setSchedulerTask(SchedulerTask schedulerTask) {
		this.schedulerTask = schedulerTask;
	}

	protected void executeInternal(JobExecutionContext context)
	throws JobExecutionException {

		schedulerTask.printSchedulerMessage();

	}
}

File : applicationContext.xml – Create an applicationContext.xml file, put all the Spring + Quartz integration stuffs inside. Read XML comments for detail.


<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd">

   <!-- Scheduler task -->
   <bean name="schedulerTask" class="com.mkyong.quartz.SchedulerTask" />

   <!-- Scheduler job -->
   <bean name="schedulerJob"
     class="org.springframework.scheduling.quartz.JobDetailBean">

     <property name="jobClass" value="com.mkyong.quartz.SchedulerJob" />

     <property name="jobDataAsMap">
	 <map>
	    <entry key="schedulerTask" value-ref="schedulerTask" />
	 </map>
      </property>
   </bean>

   <!-- Cron Trigger, run every 10 seconds -->
   <bean id="cronTrigger"
	class="org.springframework.scheduling.quartz.CronTriggerBean">

	<property name="jobDetail" ref="schedulerJob" />
	<property name="cronExpression" value="0/10 * * * * ?" />

   </bean>

   <!-- Scheduler -->
   <bean class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
	<property name="jobDetails">
	   <list>
	      <ref bean="schedulerJob" />
	   </list>
	</property>

	<property name="triggers">
	    <list>
		<ref bean="cronTrigger" />
	    </list>
	</property>
   </bean>

</beans>

5. Struts 2 + Spring

To integrate Struts 2 + Spring, just put the org.springframework.web.context.ContextLoaderListener listener class in the web.xml file.

File : web.xml


<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Struts 2 Web Application</display-name>

  <filter>
	<filter-name>struts2</filter-name>
	<filter-class>
	  org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter
	</filter-class>
  </filter>

  <filter-mapping>
	<filter-name>struts2</filter-name>
	<url-pattern>/*</url-pattern>
  </filter-mapping>

  <listener>
    <listener-class>
	  org.springframework.web.context.ContextLoaderListener
	</listener-class>
  </listener>

</web-app>

6. Demo

When Strut2 is started, it calls Spring and run the defined Quartz’s job – call SchedulerTask.printSchedulerMessage() at every 10 seconds.


INFO: ... initialized Struts-Spring integration successfully
16 Julai 2010 12:51:38 PM org.apache.coyote.http11.Http11Protocol start
INFO: Starting Coyote HTTP/1.1 on http-8080
16 Julai 2010 12:51:38 PM org.apache.jk.common.ChannelSocket init
INFO: JK: ajp13 listening on /0.0.0.0:8009
16 Julai 2010 12:51:38 PM org.apache.jk.server.JkMain start
INFO: Jk running ID=0 time=0/21  config=null
16 Julai 2010 12:51:38 PM org.apache.catalina.startup.Catalina start
INFO: Server startup in 2110 ms
Struts 2 + Spring + Quartz ......
Struts 2 + Spring + Quartz ......
Struts 2 + Spring + Quartz ......
Struts 2 + Spring + Quartz ......
Struts 2 + Spring + Quartz ......

Download Source Code

References

  1. Struts 2 + Spring integration example
  2. Struts 2 Spring plugin documentation
  3. Struts + Spring integration example
  4. Struts + Quartz integration example
  5. Struts + Spring + Quartz integration example
