Maven – JaCoCo code coverage example

In this article, we will show you how to use a JaCoCo Maven plugin to generate a code coverage report for a Java project.

Tested with

  1. Maven 3.5.3
  2. JUnit 5.3.1
  3. jacoco-maven-plugin 0.8.2
Note
JaCoCo is an actively developed line coverage tool, that is used to measure how many lines of our code are tested.

1. JaCoCo Maven Plugin

1.1 Declare the following JaCoCo plugin in the pom.xml file.

pom.xml

	<plugin>
		<groupId>org.jacoco</groupId>
		<artifactId>jacoco-maven-plugin</artifactId>
		<version>0.8.2</version>
		<executions>
			<execution>
				<goals>
					<goal>prepare-agent</goal>
				</goals>
			</execution>
			<!-- attached to Maven test phase -->
			<execution>
				<id>report</id>
				<phase>test</phase>
				<goals>
					<goal>report</goal>
				</goals>
			</execution>
		</executions>
	</plugin>

It will run the JaCoCo ‘report’ goal during the Maven test phase.

2. Unit Test

2.1 A simple Java code to return a message, and an empty string checking.

MessageBuilder.java

package com.mkyong.examples;

public class MessageBuilder {

    public String getMessage(String name) {

        StringBuilder result = new StringBuilder();

        if (name == null || name.trim().length() == 0) {

            result.append("Please provide a name!");

        } else {

            result.append("Hello " + name);

        }
        return result.toString();
    }

}

2.2 Unit test above class.

TestMessageBuilder.java

package com.mkyong.examples;

import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class TestMessageBuilder {

    @Test
    public void testNameMkyong() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Hello mkyong", obj.getMessage("mkyong"));

    }

}

2.3 Run mvn test, the JaCoCo code coverage report will be generated at target/site/jacoco/*

Terminal

$ mvn clean test

[INFO] -------------------------------------------------------
[INFO]  T E S T S
[INFO] -------------------------------------------------------
[INFO] Running com.mkyong.examples.TestMessageBuilder
[INFO] Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.012 s - in com.mkyong.examples.TestMessageBuilder
[INFO]
[INFO] Results:
[INFO]
[INFO] Tests run: 1, Failures: 0, Errors: 0, Skipped: 0
[INFO]
[INFO]
[INFO] --- jacoco-maven-plugin:0.8.2:report (report) @ maven-code-coverage ---
[INFO] Loading execution data file D:\maven-examples\maven-code-coverage\target\jacoco.exec
[INFO] Analyzed bundle 'maven-code-coverage' with 1 classes
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 4.164 s
[INFO] Finished at: 2018-11-14T16:48:39+08:00
[INFO] ------------------------------------------------------------------------

2.4 Open the target/site/jacoco/index.html file, review the code coverage report :

  1. Green – Code is tested or covered.
  2. Red – Code is not tested or covered.
  3. Yellow – Code is partially tested or covered.

3. Improving the Unit Test

3.1 Adding one more test for the red line.

TestMessageBuilder.java

package com.mkyong.examples;

import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class TestMessageBuilder {

    @Test
    public void testNameMkyong() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Hello mkyong", obj.getMessage("mkyong"));

    }

	@Test
    public void testNameEmpty() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Please provide a name!", obj.getMessage(" "));

    }
}

Review the report again.

Terminal

$ mvn clean test

target/site/jacoco/index.html

3.2 Add one more test for the yellow line if condition.

TestMessageBuilder.java

package com.mkyong.examples;

import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.assertEquals;

public class TestMessageBuilder {

    @Test
    public void testNameMkyong() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Hello mkyong", obj.getMessage("mkyong"));

    }

    @Test
    public void testNameEmpty() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Please provide a name!", obj.getMessage(" "));

    }

    @Test
    public void testNameNull() {

        MessageBuilder obj = new MessageBuilder();
        assertEquals("Please provide a name!", obj.getMessage(null));

    }

}

Review the report again.

Terminal

$ mvn clean test

target/site/jacoco/index.html

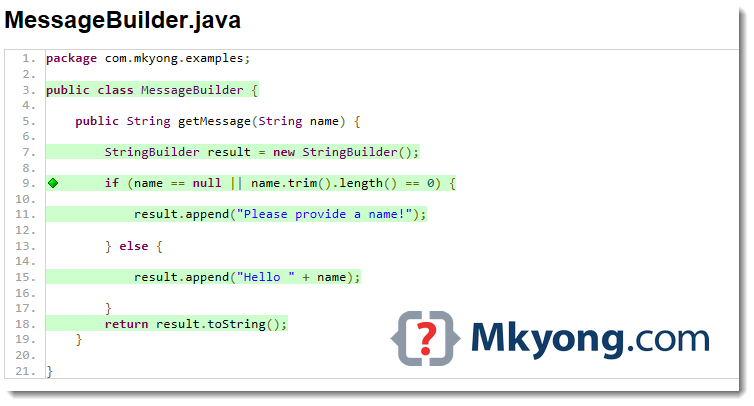

Finally, all lines are tested, 100% coverage.

4. FAQs

4.1 Make sure lines coverage must meet the minimum 90%.

pom.xml

	<plugin>
		<groupId>org.jacoco</groupId>
		<artifactId>jacoco-maven-plugin</artifactId>
		<version>${jacoco.version}</version>
		<executions>
			<execution>
				<goals>
					<goal>prepare-agent</goal>
				</goals>
			</execution>
			<execution>
				<id>jacoco-report</id>
				<phase>test</phase>
				<goals>
					<goal>report</goal>
				</goals>
			</execution>
			<!-- Add this checking -->
			<execution>
				<id>jacoco-check</id>
				<goals>
					<goal>check</goal>
				</goals>
				<configuration>
					<rules>
						<rule>
							<element>PACKAGE</element>
							<limits>
								<limit>
									<counter>LINE</counter>
									<value>COVEREDRATIO</value>
									<minimum>0.9</minimum>
								</limit>
							</limits>
						</rule>
					</rules>
				</configuration>
			</execution>

		</executions>
	</plugin>

The jacoco:check goal is attached to Maven verify phase.

Terminal

$ mvn clean verify

[INFO] Analyzed bundle 'maven-code-coverage' with 1 classes
[WARNING] Rule violated for package com.mkyong.examples: lines covered ratio is 0.8, but expected minimum is 0.9
Note
More JaCoCo check examples :

4.2 How to update the default JaCoCo output folder?

pom.xml

	<plugin>
		<groupId>org.jacoco</groupId>
		<artifactId>jacoco-maven-plugin</artifactId>
		<version>${jacoco.version}</version>
		<executions>
			<execution>
				<goals>
					<goal>prepare-agent</goal>
				</goals>
			</execution>
			<execution>
				<id>jacoco-report</id>
				<phase>test</phase>
				<goals>
					<goal>report</goal>
				</goals>
				<!-- default target/jscoco/site/* -->
				<configuration>
					<outputDirectory>target/jacoco-report</outputDirectory>
				</configuration>
			</execution>
		</executions>
	</plugin>

Download Source Code

$ git clone https://github.com/mkyong/maven-examples.git
$ cd maven-code-coverage

$ mvn clean test
# view report at ‘target/site/jacoco/index.html’

References

  1. Wikipedia : Java code coverage tools
  2. JaCoCo Java Code Coverage Library
  3. JaCoCo in Eclipse IDE
